CONTREL PRODUCT
TCS-A5
Actuator for safety circuit as required by CEI 64/8
Product Range
TCS
Order Code
3TC10V
Basic Information
| Product Range | TCS |
| Order Code | 3TC10V |
| Barcode (EAN13) | EAN-101 |
Technical Characteristics
| Supply Voltage (Main) |
110...240 VAC,
Optional: 110 VDC, 24...48 VAC/DC |
| Power Consumption | 5 VA (max) |
| Mounting Mode | DIN rail 6 modules |
Environmental Specifications
| IP Protection (Front) | IPIP40 |
| IP Protection (Terminals) | IPIP20 |
| Relative Humidity | 5...95%% |
| Operating Temperature | -10...+60 °C |
| Storage Temperature | -20...+70 °C |
Standards & Compliance
| Standards | EN 61010-1, EN 61551-1, EN 61326-1, EN 61326-2-4, CEI 64-8/464.1, 64-8/465.5, 64-8/537.4.3 |
Related Products and Accessories

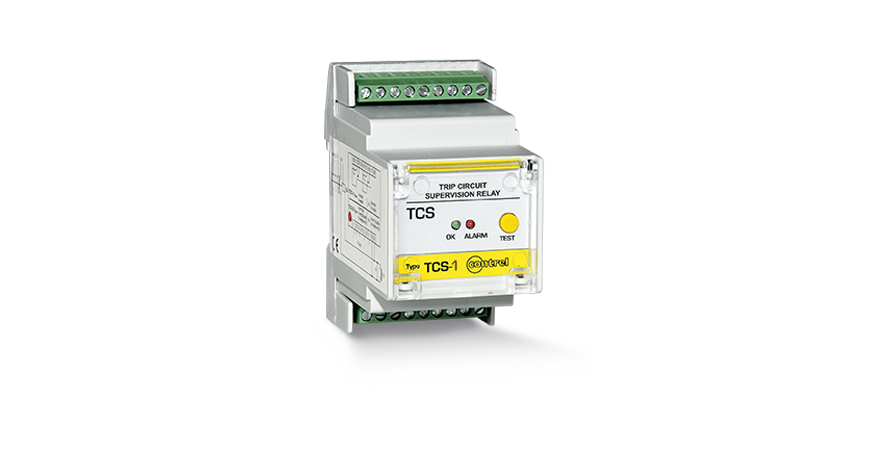

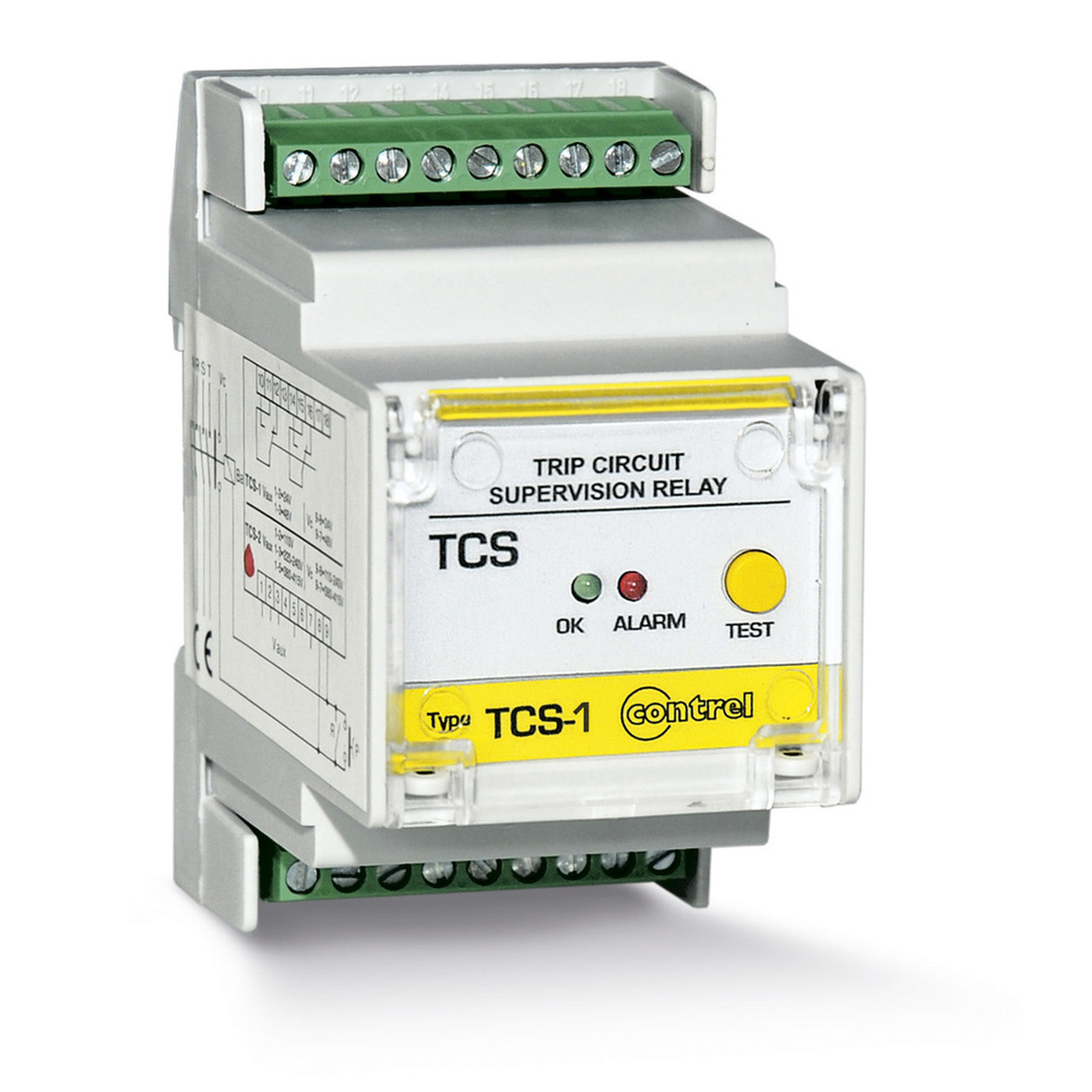

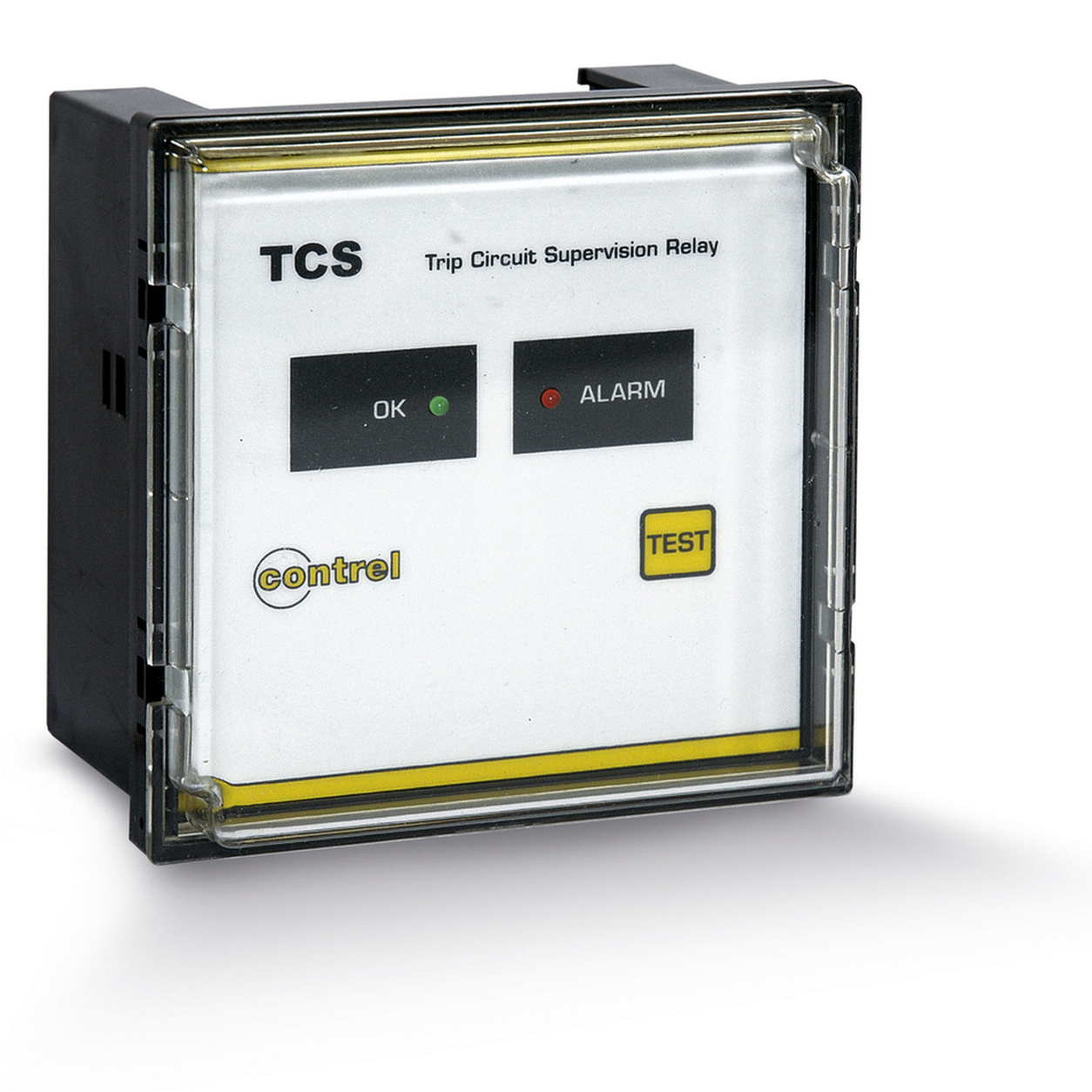

TCS-1 | TCS-3

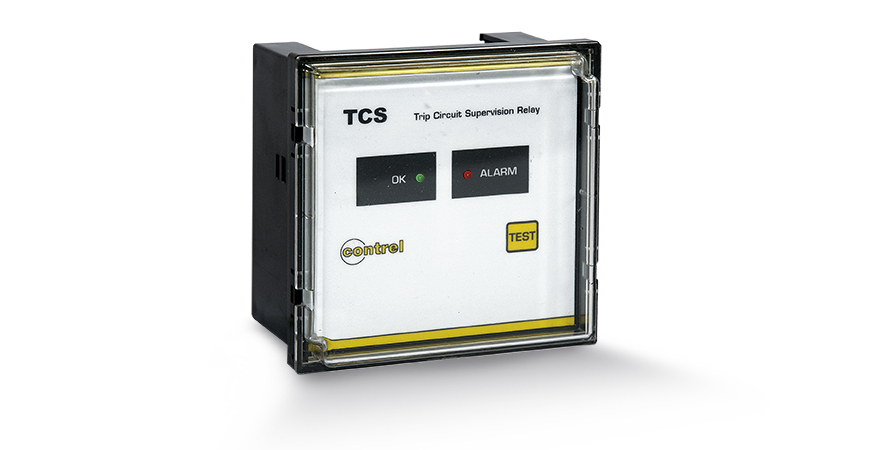

TCS-2 | TCS-4
