CONTREL PRODUCT
ELR-3AN
Earth leakage relay type A, 2 operating thresholds, modular with display, external toroid, auxiliary supply 230VAC
Product Range
ELR
Order Code
3ELR3A200010000
Weight [kg]
200g
Basic Information
| Product Range | ELR |
| Order Code | 3ELR3A200010000 |
| Weight [kg] | 200g |
Technical Characteristics
| Supply Voltage (Main) |
90…250VAC or 120…350VDC
Optional: 20...60 VAC/DC |
| Power Consumption | 6 VA |
Control Circuit
| Toroidal Transformer | External |
| Tripping Set-Point (Δn) | 0.03...30 A |
| Tripping Delay Time | 0.2...10 s |
| Resetting | Automatic / manual |
| Test Button | Yes |
| Shunt Circuit Control | No |
| Auxiliary Contacts | 2 changeover SPDT (trip) - 5A - 250VAC |
Environmental Specifications
| IP Protection (Front) | IP40 |
| IP Protection (Terminals) | IP20 |
| Relative Humidity | ≤ 90% |
| Operating Temperature | -10...+60 °C |
| Storage Temperature | -20...+80 °C |
Standards & Compliance
| Standards | EN 61326-1:2013-01, EN 61326-2-1:2013-01, EN 61326-2-2:2013-01, EN 61326-2-3:2013-01, EN 61326-2-4:2013-01, EN 61326-2-5:2013-01, EN 60947-2:2017-10 (Annex M), EN 61543/A2:2006-02, EN 61543/A11, EN 61543/A12 |
Related Products and Accessories

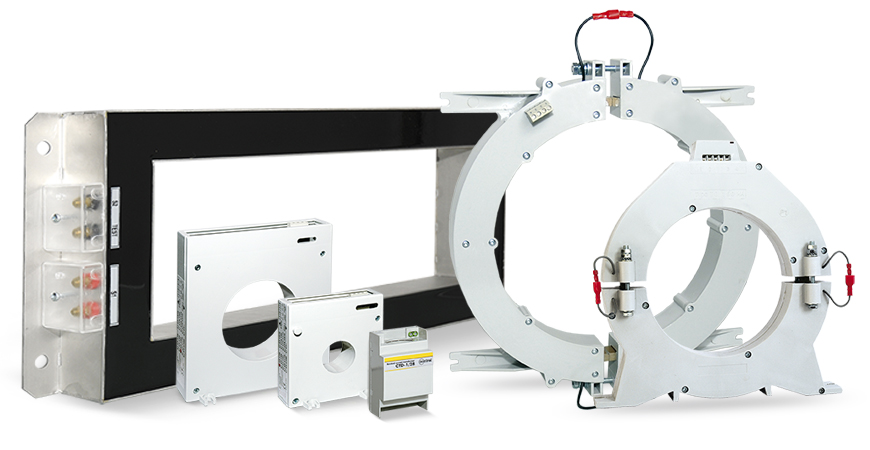

CT-1 | CTA-1 | CTD
